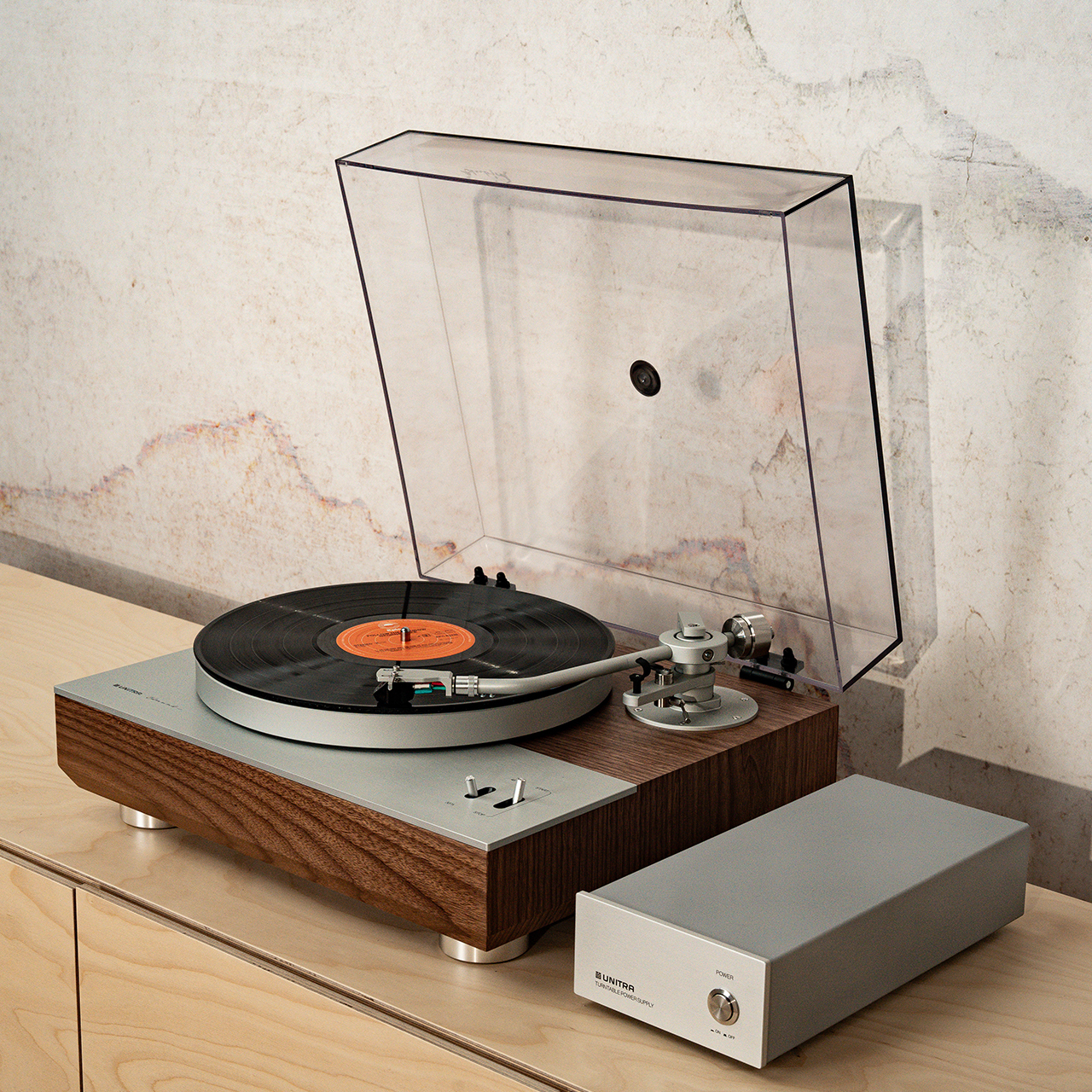

GSH-801 EDMUND
Turntable for the most demanding
The highest model of the Unitra turntable, it has a direct drive, with a proprietary motor developed and available only at Unitra with an advanced speed control system. Stabilization is provided by a proprietary speed stabilization algorithm. Developed and available only in Unitra turntables, the R10 arm, running on two pairs of bearings, is made of aluminum. Built on a solid , full plinth, equipped with an external linear power supply and direct DIN connector access to the arm.
An unsurpassed model
Edmund is the art of turntable making brought to a higher level. It has all the advantages of the Fryderyk turntable - in particular, we equipped it with the Unitra NB 1direct drive and U1 arm. In addition, we added an even more massive full plinth and an aluminum platter for more stable operation, while an external power supply and direct DIN connector access to the cartridge remove even the smallest obstacles to perfect sound. All this makes the feeling of interacting with a vinyl record almost deconstructed into single notes of pleasure in the top model of the Unitra turntable.
Design
The unit has a timeless design with an aluminum top panel and real wood veneer finish.
Unitra NB1 direct drive
The drive system offers excellent speed control to minimize wow and flutter and ensure quiet and maintenance-free operation
Tonearm
Author's J-type arm, developed from scratch, inspired by the historic Unitra Adam arm, but with better parameters.Made of 6082-type alloy aluminum - a material characterized by high mechanical strength.Both axes use Japanese NSK pivot bearings.
Anti-Skate
Classic mechanism with a fixed weight
Platter
Made from anodized aluminum, designed to minimize wow and flutter
Plinth
Solid, made from milled and veneered MDF, with a massive vibration-damping base
Dust Cover
Thick dust cover with heavy-duty hinges to dampen surface noise
Hinges
Massive heavy-duty metal hinges make locking the lid in any position convenient and hassle-free, and the adjustable opening force makes it easy to adjust to individual preferences.

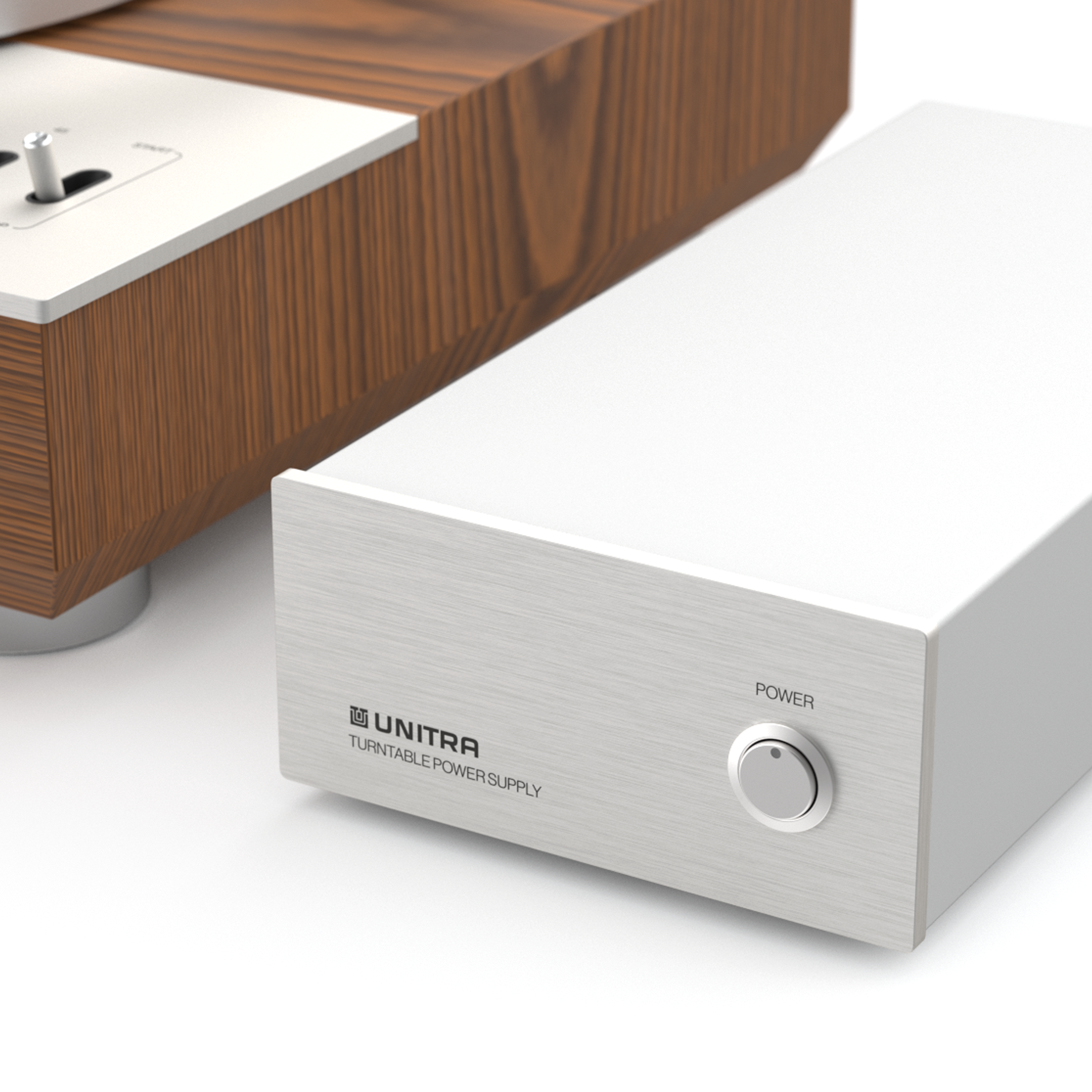

Power Supply
External, linear, included with the product
Connector
DIN for direct signal output from the cartridge
Specifications
Power Supply:230 V AC, 50 Hz 4 W
Power Supply Type:External, included
Standby Power Consumption:0,42 W
Speeds:33⅓ RPM, 45 RPM
Finishes:Milled veneered MDF, Brushed aluminum panel, Aluminum platter
Outputs:DIN
Weight:14.1 kg (31.1 lbs)
Dimensions:429 × 373 × 178.3 mm
Cartridge:Ortofon 2m Black
Drive System
Model:Unitra NB1
Type:Unitra NB1 direct drive
Motor:Air-core brushless DC motor
RPM control:Digital controller
Wow & flutter:0,08%
Tonearm
Model:Unitra R10
Material:Aluminum
Bearing System:In two planes
Inspiration:Unitra Adam tonearm (with improved performance)
Effective mass arm:18.5 - 22 g
