Turntable ready:
Traditional audiophiles will recognise the assured quality in the high-quality, low-noise turntable input of the LEAK STEREO 130.Optimised for moving magnet cartridges, the JFET-based circuit offers precise RIAA equalisation in accordance with de facto industry standards for vinyl record playback.
Headphone users:
The LEAK STEREO 130 uses a dedicated amplifier circuit with current-feedback technology for the headphones output. Equal in performance to standalone headphone amplifiers, beyond the price-class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.
Conversion without compromise:
Utilising the acclaimed ES9018 Sabre32 Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator, the LEAK STEREO 130 offers ultra-low noise, high dynamic range of digital audio files with a sampling rate of up to 284kHz (PCM) and DSD256.
Direct and tone control:
The LEAK STEREO 130 incorporates LEAK ’s signature DIRECT switch to bypass steps in the analogue circuitry, for the purest signal path. In addition, the signature BASS and TREBLE tone controls allow for customisation of the amplifier output signal to suit your music medium and matched electronics or loudspeakers.
Music entusiast at its heart:
The LEAK STEREO 130 ’s all round performance is engaging, detailed and refined. Detail, timing and dynamics excel, regardless of source or medium. Designed for the modern-day music enthusiast with a nod to our heritage, the LEAK STEREO 130 does not discriminate when it comes to expression and enjoyment of your music reproduction.
A Timeless design:
Matching the classic art-deco inspired, traditional, LEAK industrial design, the LEAK STEREO 130 echoes a long-lost legacy in home audio, with stunning aesthetics.
One Step Ahead
The premium CD mechanism uses read ahead buffering to reduce disc read errors and deliver the highest level of digital signal
extraction from CD media.
Accracy for the Benefit of Theenthusiast
A temperature-compensated crystal oscillator controls the master clock. This enables the digital only output to provide incredibly low digital distortion (also referred to as ‘jitter’). This low jitter output offers superior performance when compared to like-for-like players.

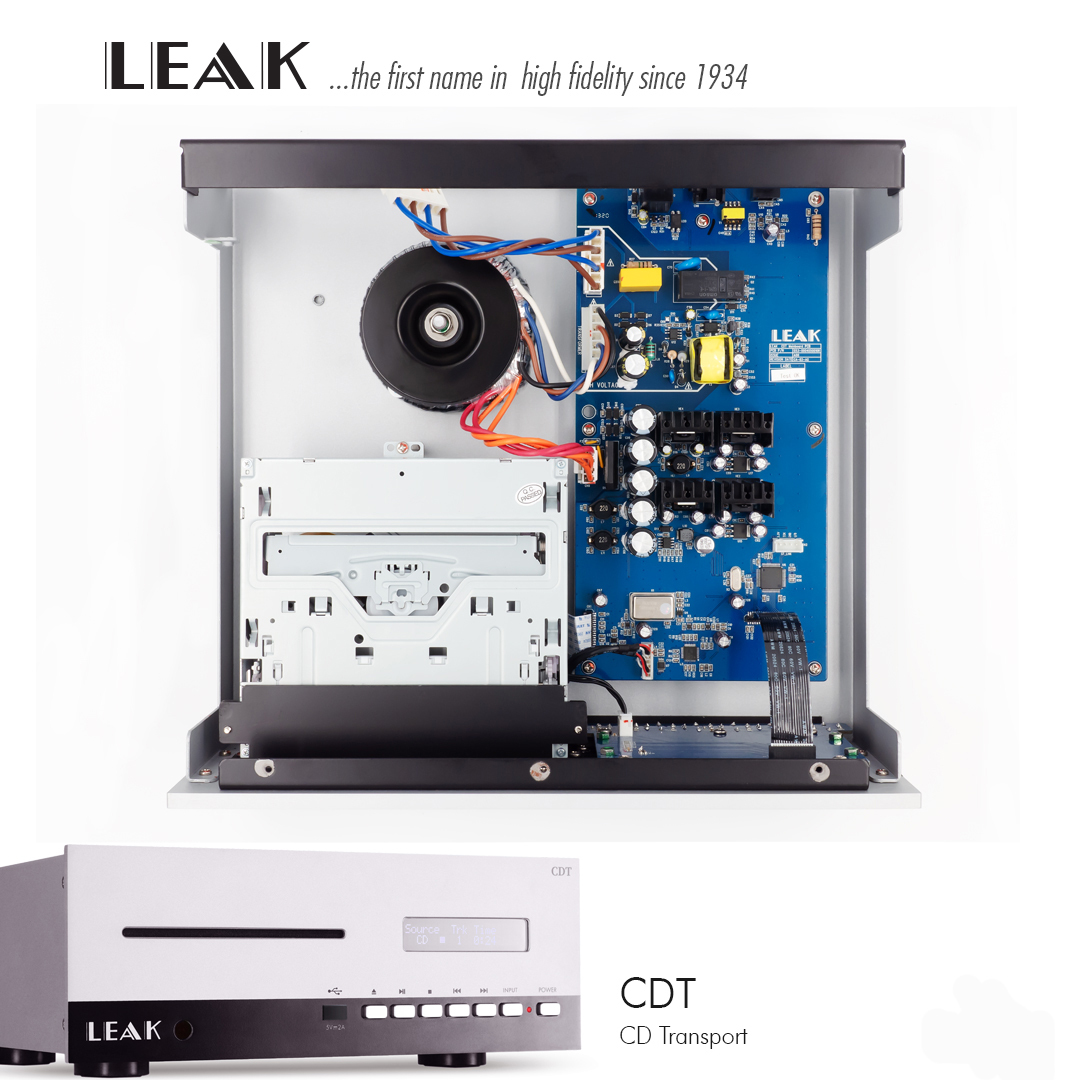

Excellence in Isolation
The LEAK CDT shields the CD mechanism from electrical interference, thus ensuring purity of signal. Such incremental benefits further enhance the performance for the audio enthusiast.
Disc or disk? Either, or.
The modern audio enthusiast will enjoy music in many formats due to the convenience and modern day quality of digital files. The LEAK CDT facilitates your digital audio collection with digital file playback from USB storage devices. The LEAK CDT will play CD,CD-R, CD-RW discs as well as .WAV, .MP3* .WMA* and .AAC* digital audio files via USB.*up to 48kHz, 320kps
A Timeless Design
Matching the classic art-deco inspired, traditional, LEAK industrial design, the LEAK CDT echoes a long-lost legacy in home audio, with stunning aesthetics.
LEAK STEREO 130 Specification
D/A Converter:ESS Sabre32 Reference ES9018K2M
Input Sampling Rates:Optical, Coaxial: 44.1kHz~192kHz; USB: 44.1kHz~384kHz (PCM)/DSD64, DSD128, DSD256
Rated Output Power:2 x 45W (8ohm)/2x65W (4ohm)
Total Harmonic Distortion: < 0.005% (30W, 8ohm)
Frequency Response:20Hz-20kHz (+/-0.5dB)
Input Sensitivity:480mV (RCA AUX IN); 4.1mV (phono MM)
Input Impedance:10Kohm (AUX) ; 47Kohm //100pF (phono MM)
Signal to Noise Ratio (S/N):≥108dB
Bluetooth Version:4.0
Codec:aptX (priority), SBC
USB Input:1 x USB (B-type)
Digital Audio Inputs:2 x Optical TOSlink ,1 x RCA COAX
Digital Audio Outputs:1 x Optical TOSlink ,1 x RCA COAX
Analog Inputs:2 x RCA (AUX1, AUX2) ,1 x RCA (phono MM)
Analog Output:1 x RCA (PRE OUT)
Dimensions W x H x D (mm):302 x 118 x 270(Silver)326 x 146 x 276（Walnut）
Net Weight:7.02kg(Silver)
LEAK CDT Specification
USB Memory Device Audio Format:WAV, MP3, AAC, WMA
USB Memory Device File System:FAT12, FAT16 & FAT32
Output Level:500 +/- 50mVpp
Output Impedance:75ohms
Frequency Response:-0.01dB (20Hz-20kHz,ref.1kHz)
Sampling Frequency:44.1kHz (CD),44.1kHz, 48KHz (USB memory device)
Digital Output Interface:1 x Coaxial , 1 x Optical
Standby Power Consumption:< 0.5W
Dimensions (mm):302 x 117.1 x 278(Silver)326 x 145.1 x 283(Walnut)
Net Weight:5.3kg (Silver)
